Ampaura VAST

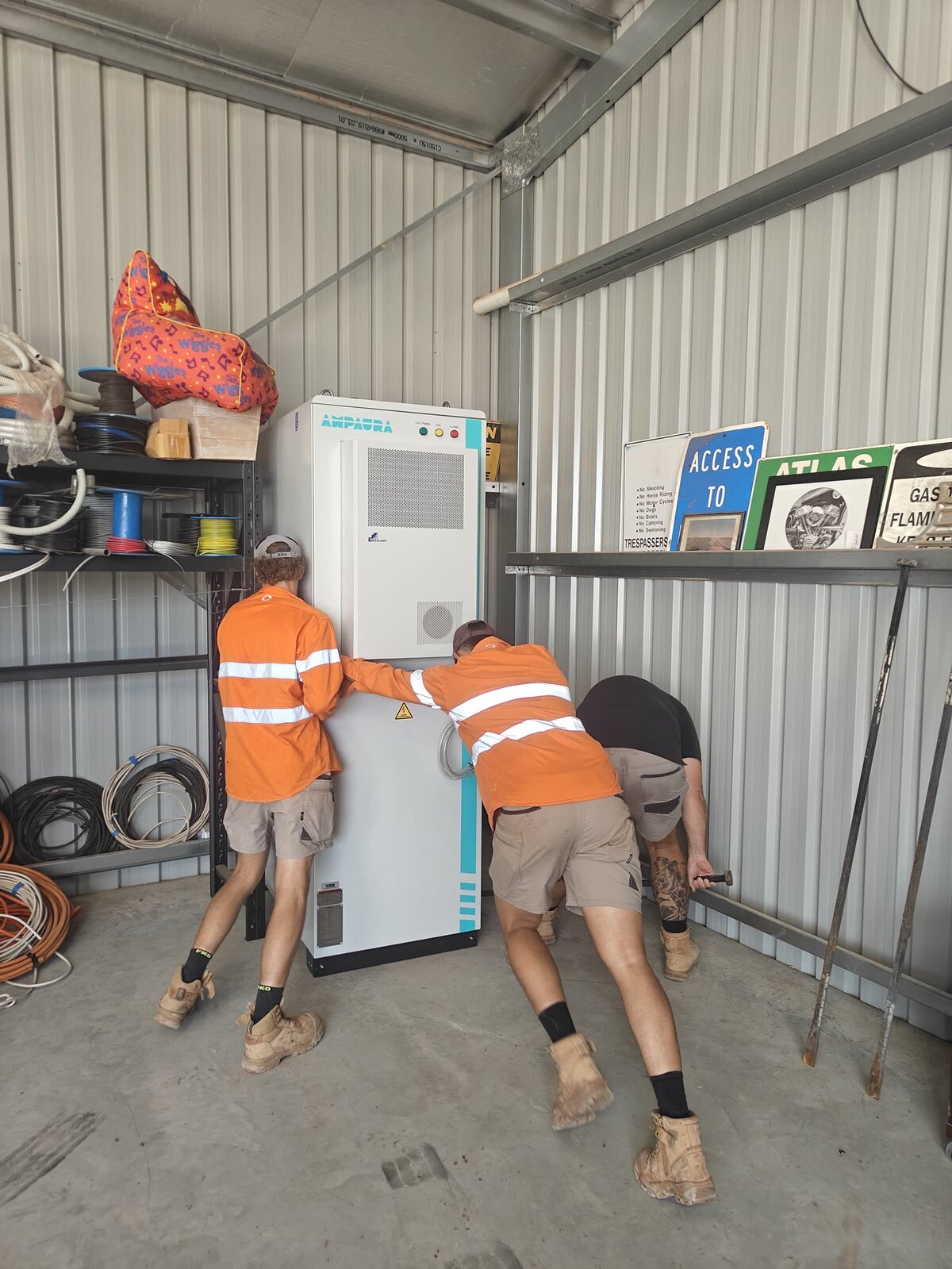

One outdoor cabinet with the battery, the inverter and the controls already inside. Four sizes from 63 to 111 kWh, on site and commissioned in days rather than weeks.
What makes VAST the easy one to specify
Battery, inverter and controls in one cabinet

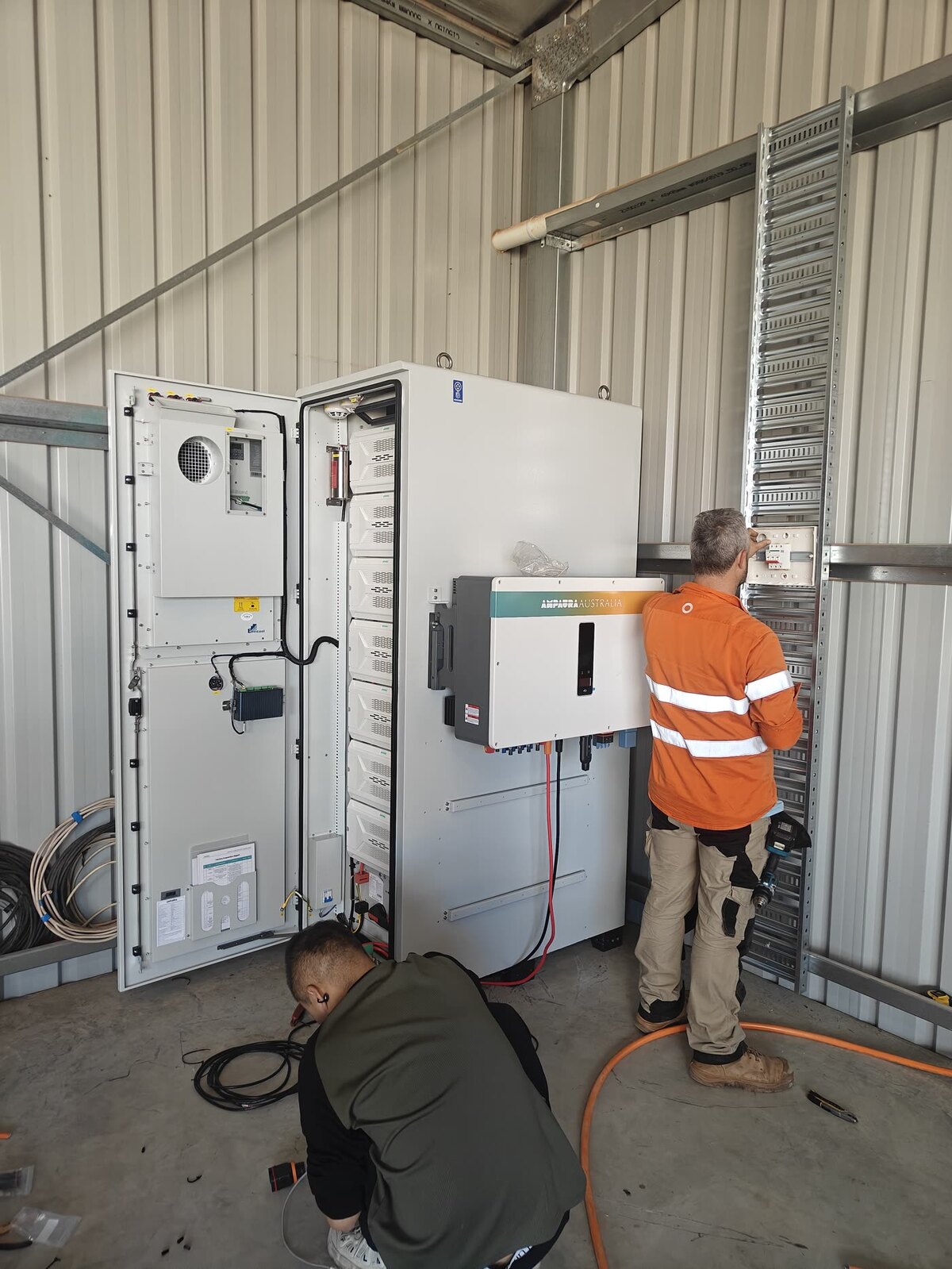

There's no separate inverter cabinet to find room for and no third-party energy management system to integrate. The battery packs, the hybrid inverter, the battery management system and the energy management system all ship inside the same enclosure, pre-wired and factory tested.
Solar connects straight into it
Up to 45 kW of PV on the 30 kW models and 75 kW on the 50 kW model, across four MPPTs with two strings each. Existing arrays can be brought in without adding another inverter.
It keeps the lights on
Backup output rated to the full 30 or 50 kW, with grid to island switching in under 20 milliseconds. A generator input is available for sites that already run one.
Built to sit outside

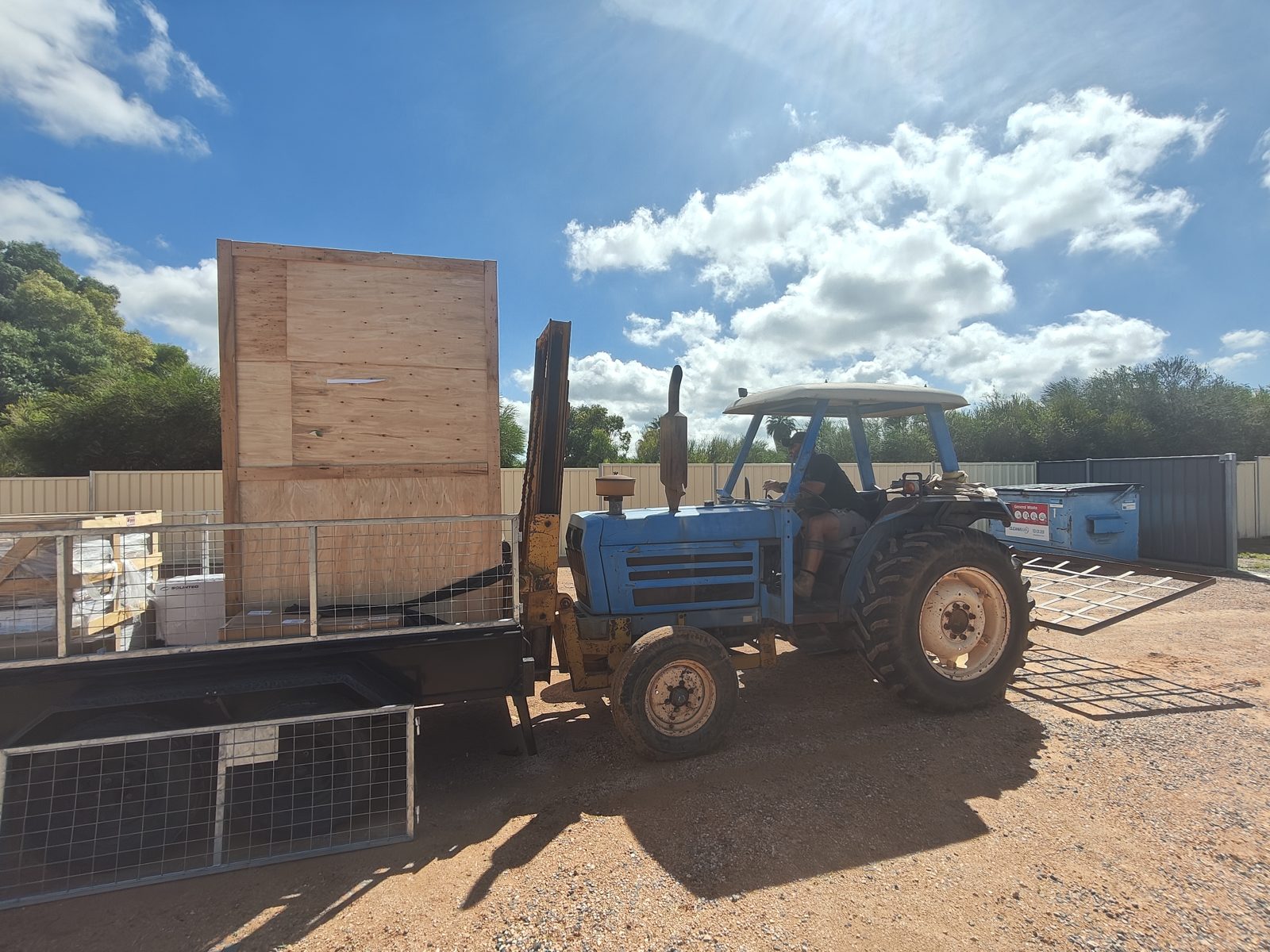

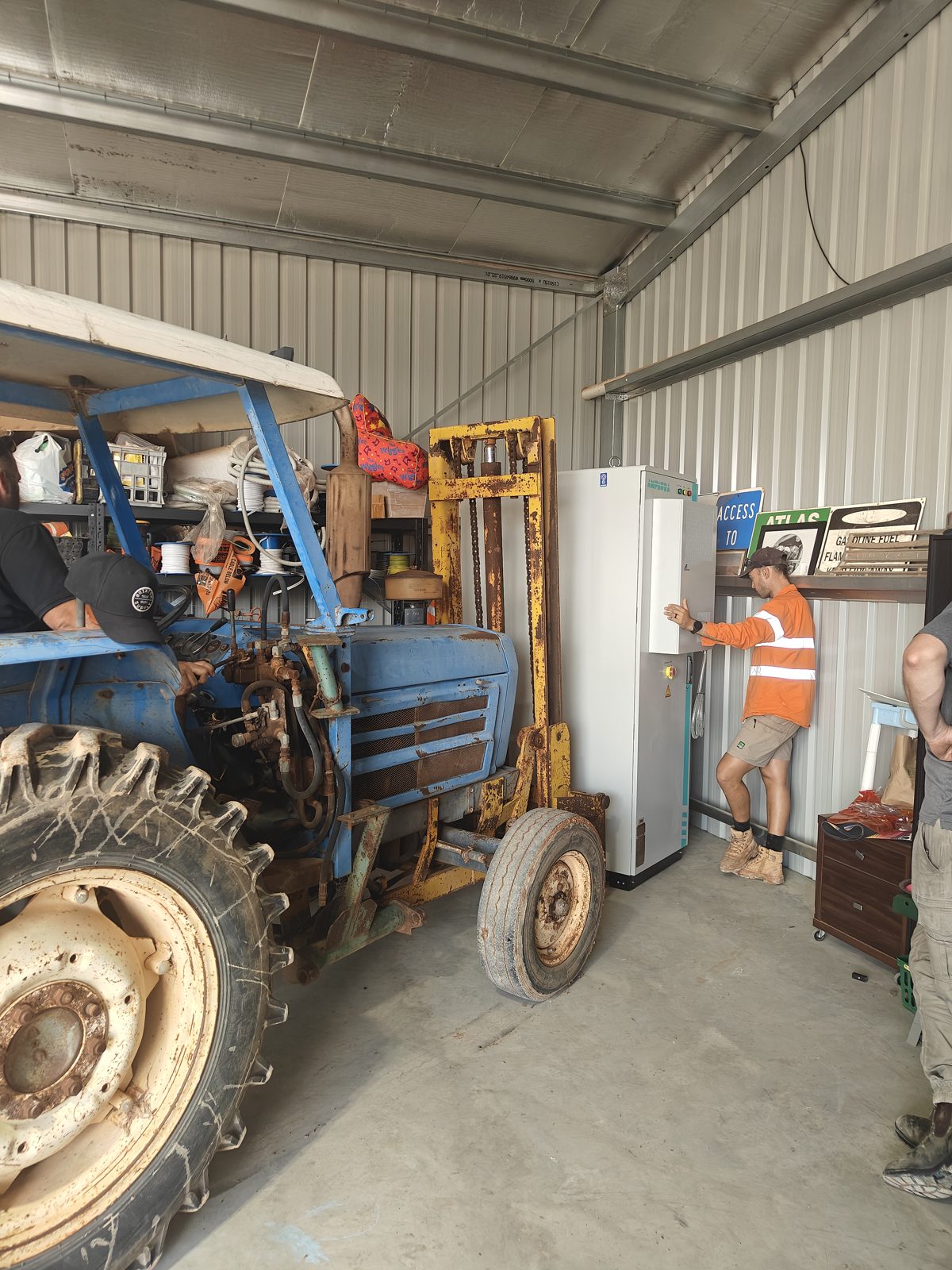

IP54 cabinet with an IP67 inverter, air conditioned thermal management, and smoke, temperature and aerosol fire protection built in. Forklift handling or top hoisting, so most sites need no crane.

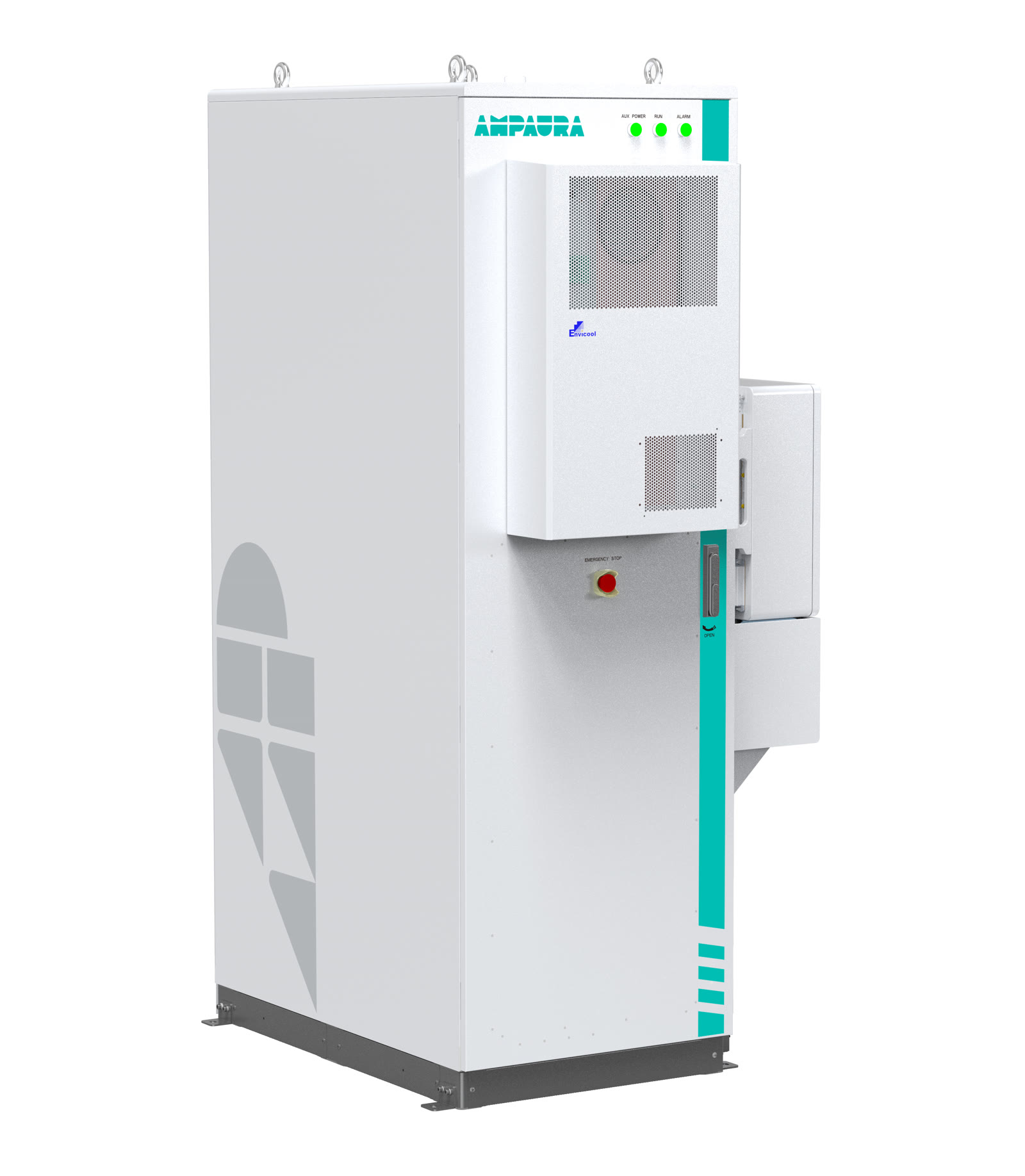

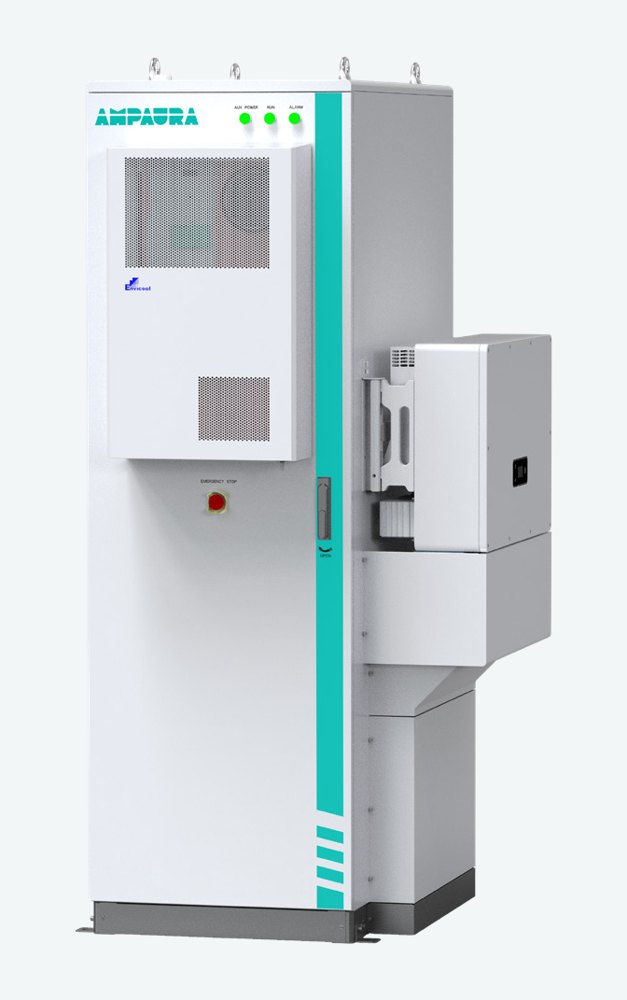

The cabinet, close up
Specification
Figures below are taken directly from the Ampaura VAST specification sheets. Where the 30 kW and 50 kW models differ, both are shown.
Spec sheets
All three VAST specification sheets. If you need drawings, warranty terms or a compatibility note for an existing solar array, ask and we will send the full pack.
Get it sized properly
Send us twelve months of interval data and we'll model the cabinet against your load in Ampaura Designer, then tell you whether VAST is the right size or whether a Class cabinet suits better.
